We are proud to offer autoclaves from HIRAYAMA Manufacturing Corporation, a renowned Japanese manufacturing company since 1924 known for its commitment to quality and innovation. HIRAYAMA autoclaves are a testament to Japanese precision and engineering excellence. These autoclaves feature a wide range of functionalities, including automatic opening/closing lids, biohazard prevention, deodorization, dissolution, drying, forced cooling, and more. They are designed with user-friendly features such as handle types and lock release temperature settings, ensuring ease of operation. HIRAYAMA autoclaves are trusted worldwide for their cost-effectiveness, reliability, and superior sterilization capabilities. When you choose HIRAYAMA, you are choosing Japanese manufacturing quality at its finest, providing you with peace of mind for your laboratory sterilization needs.

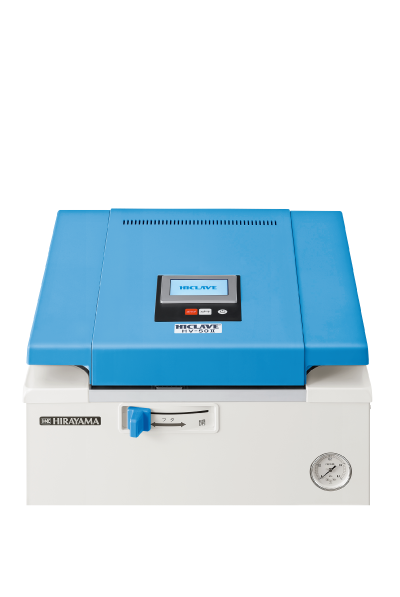

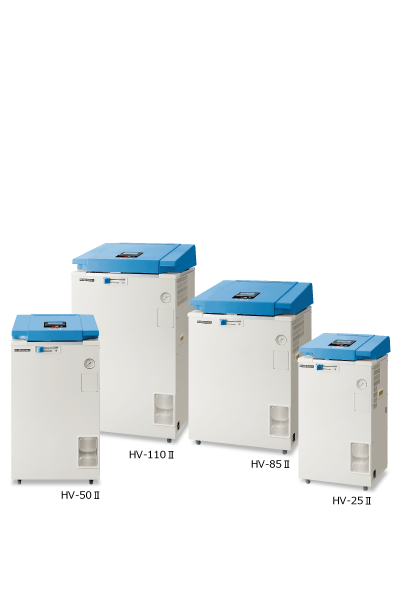

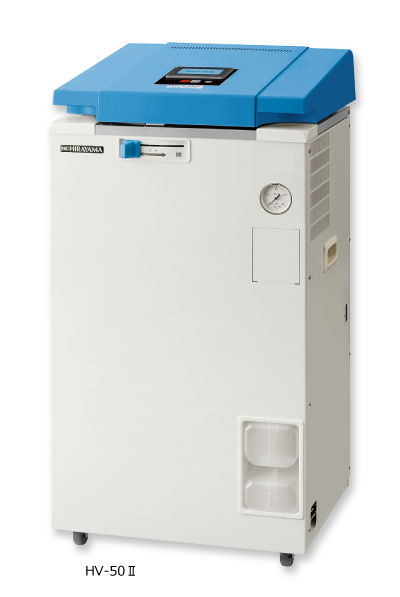

Small to medium capacity range
Capacities: 25L, 50L, 85L, 110L
Electro-mechanical lid lock system
The lid can be opened and closed easily and reliably with the one-touch lever.
A pressure seal method is used as a safety measure.

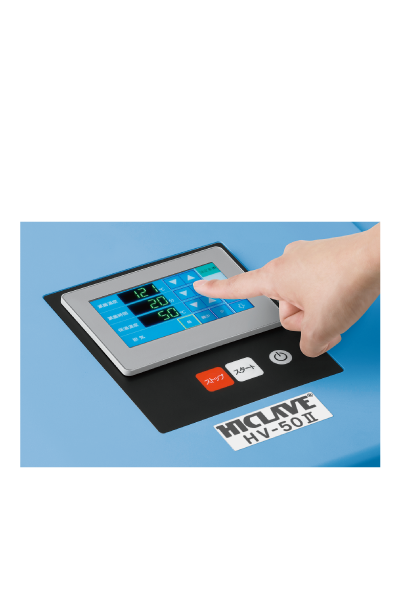

Color touch panel
A color touch panel allows an operator to understand the operation screen contents at a glance.
Dual interlock mechanism
The lid is locked by dually detecting the chamber pressure and chamber temperature during operation. The lock state is maintained even if an operation is manually interrupted.
Memory function
Up to 8 patterns for each mode can be registered according to the purpose of use.
The lid lock release temperature setting
The lid lock release temperature can be set up for each mode or program to secure safety at the time of unloading.
Air removal time setting
It is effective for sterilization of Durham tubes etc. from which air is difficult to escape.
Dual detection system for residual air
The residual air which may cause sterilization failure is dually detected to always maintain the appropriate sterilization conditions for loads.
Detection of residual air is performed dually when the chamber pressure is normal (during air removal by gravity displacement) and when the chamber is pressurized (during air removal by pressure exhaust).
Forced cooling unit (option)
After sterilization, the chamber pressure is lowered by cooling with a forced cooling unit (air-cool) to shorten the time to unloading
Programmable auto-start function
It is a timer function that starts an operation at the set time. ※The operation start time can be set up to 1 week later.
These autoclaves are manufactured by Astell Scientific Ltd., U.K. Astell has been a leader in sterilization since 1884.
Astell Scientific is a recognised market leader in the manufacture of autoclaves. A focus on quality and repeatability is central to it's autoclave production processes.

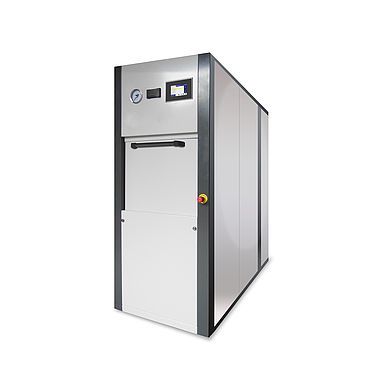

125 - 360 Litre SQUARE ECO Autoclave
The SQUARE ECO Range is the entry level of Square chambered autoclaves offered by Astell. The range is ideal where you are looking to sterilize basic items and is suitable for most labs sterilizing items like glassware, plastics and media etc

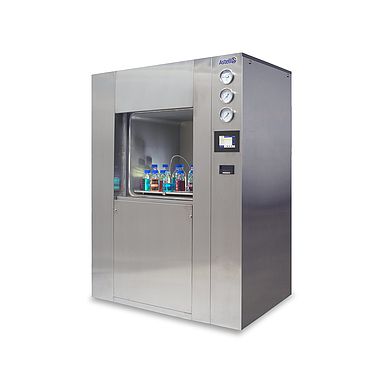

125 - 735 Litre SQUARE Autoclaves
The 125 - 735 litre SQUARE autoclave range is easily customizable and with a range of different chamber sizes. The SQUARE range is Astell's most popular range of square chambered autoclaves, capable of sterilizing almost anything (additional options may be required).
600 - 1,400 litre SQUARE MAX Autoclaves
The 600 - 1,400 litre SQUARE MAX Autoclave Range is capable of sterilizing almost anything (additional options may be required) and easily customizable and with a range of different chamber sizes. The SQUARE MAX range is ideal for high throughput situations or bulky and awkward loads.

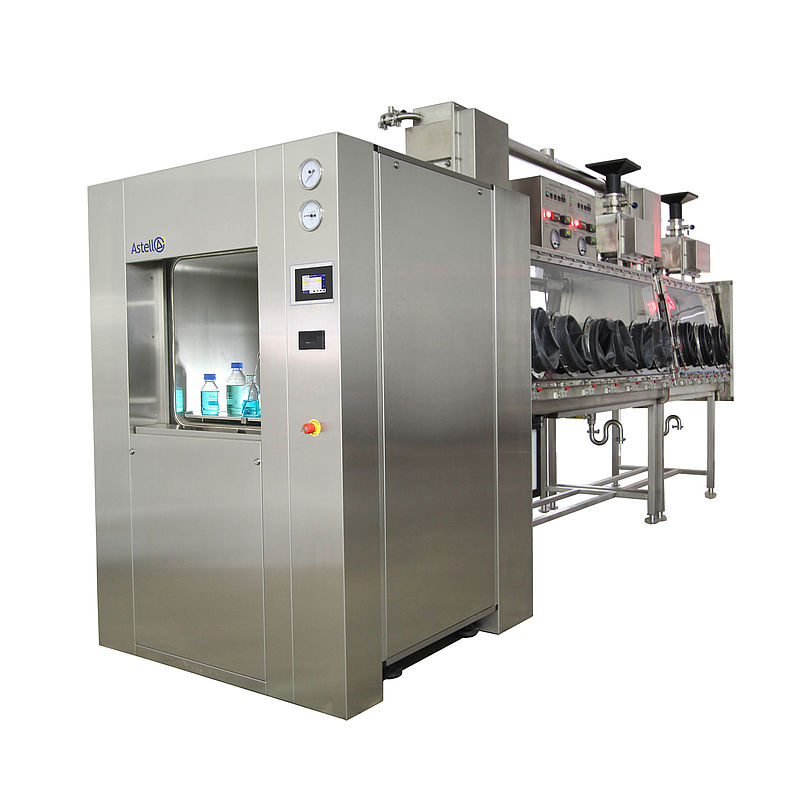

250 - 1,200 litre Double Door SQUARE Autoclaves
The 250 - 1,200 litre Double Door SQUARE Autoclave Range is ideal for high-containment type (BSL-3/4) facilities or where a specific area or 'clean room' are in operation, as the sterilized load can 'pass through' the autoclave to be removed in to this environment.
